Choosing the Best Fan to UseThere is no best fan but there can be the best fan for your situation. Generally fans can be broken into Four categories: Low Wattage Fans - good sub-slab gravel and slab sealing. Mid Range Fans - less than optimal sub-slab aggregate and/or slab leakage High Flow Fans - Lots of slab leaks or very porous soil or multiple foundations to treat High Vacuum Fans - Packed dirt under the slab with likely low system airflow. Sometimes the mitigation system has both characteristics such as compacted soil under a slab and high airflow sub-membrane suction in a crawl space. The High Flow fans will generally take care of this situation but there is a noise and energy use penalty. It is also wise to always choose the lowest wattage fan that will accomplish the job. Lower wattage fans are almost always quieter and their long term energy costs can be significant. Pipe size limits the maximum airflow that can be achieved. In the chart below the 20 watt RP140 with 4" pipe moves as much free air as a 120 watt HP220 can move with 3" pipe. If you need to move air you must have a large enough pipe. |
|
|
FanTech FR100
|
FanTech FR150
|
FanTech HP190
|
FanTech HP2133
|
FanTech HP220 w 4" piping
|
FanTech Two - HP220's w 4" piping
|
FanTech HP220 w 6" piping
|
Two FanTech HP220's w 6" piping
|
FanTech HP2190
|
FanTech RN2
|
FanTech HP190SL
|
FanTech REC 10XL
|
FanTech FR250-8 w/6
|
FanTech RN2EC-4 w/4"
|
FanTech RN4EC-4 w/4"
|
FanTech PFEDK w Varying voltage"
|
PDS 150
|
RadonAway GP201
|
RadonAway GP301
|
RadonAway GP401
|
RadonAway GP501
|
RadonAway GX5
|
RadonAway RP145
|
Two RP145 Fans with 4" piping
|
RadonAway RP140
|
RadonAway RP260
|
RadonAway RP265
|
RadonAway RP265 vs GP501
|
RadonAway RP380 w 6" piping
|
RadonAway XP151
|
RadonAway XP201
|
RadonaAway XR261
|
RadonaAway SF180
|
RadonaAway HS2000
|
RadonaAway HS5000
|
RadonaAway LV175
|
Festa Spirit
|
Festa Maverick
|
Festa Legend
|
Festa Hawk
|
Festa Force w 4" Pipe
|
Festa Force w 6" Pipe
|
Festa Prowler
|

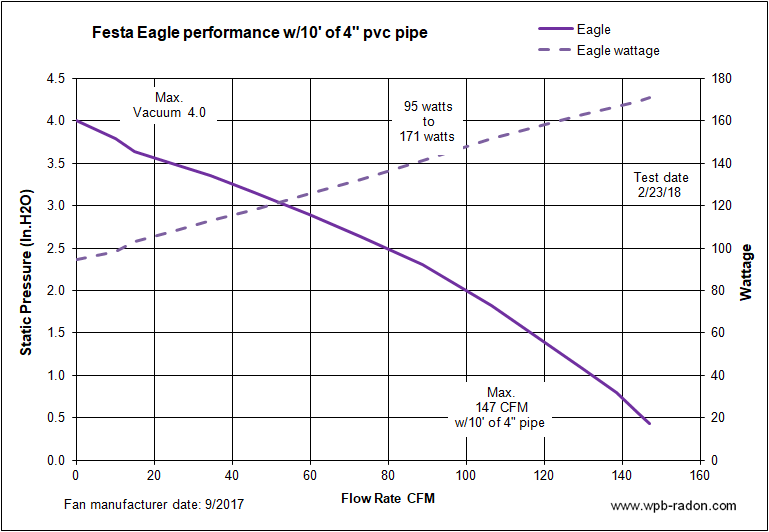

Festa Eagle
|
Festa Eagle Extreme
|
Festa Eagle vs Eagle Extreme
|
Festa Fury 1 w/4" pipe
|
|
|
Festa Fury 1 w/6" pipe
|
Festa Fury II w/4" pipe
|
Festa Fury 1 vs Fury II w/4" pipe
|
Maverick LV w/4" pipe
|
Hawk LV w/4" pipe
|
Prowler LV w/4" pipe
|
Legend LV w/4" pipe
|
All Festa LV Fans w/4" pipe
|
Obar Systems GBR 45
|
Obar Systems GBR 45XL
|
Obar Systems GBR76 SOE
|
Obar Systems GBR76 UD 120 vs 240 volts
|
Obar Systems GBR89 HA & MA
|
Pressure Tech Fans
|
Pressure Tech PT-8
|
Pressure Tech PT-16
|
Pressure Tech PT-25
|
Pressure Tech PT-2DC-6
|
Pressure Tech PT-2DC-4
|
Pressure Tech PT-4DC
|
SWAT Fan Max w/4" pipe
|
Tjernlund Radon Vac RMS160 w/4" pipe
|
Tjernlund Radon Vac RMS160 Exhaust FPM
|
HP190SL vs SF180
|
Elicent AXC100A
|
GP Series Comparison
|
Low Wattage Fan Comparison
|
High Vacuum Fan Comparison
|
Mid-Range 4" orfice Fan Comparison
|
Mid-Range 6" orfice Fan Comparison
|
High Airflow Fan Comparison
|
Comparison of Fan 10 Year Electric Cost
|
Comparison of FanTech Fans
|
Comparison of RadonAway Fans
|
Comparison of Festa AMG Fans
|
Large Radon Fan Comparison w/6" pipe
|
Low Voltage Fan Comparison
|
Legend vs HP220 vs RP265
|
Sun Court TF104 w/4" pipe
|
Sun Court TF106 w/4" pipe
|
AMG Force + Two HP220's with 4" piping
|
Flow Tech 40/75 w/4" pipe
|
|
Radon Job Photos Fan Performance Lots of Other Info WPB Home |
|
