Commercial Radon Mitigation
|
|
|
Commercial job list Military job photos WPB Home Page Residential System Photos All Info pages List of all WPB-radon pages Watch Webinar where Bill explains issues with Commercial & School mitigation |
Commercial Radon Mitigation
|
|
|
Commercial job list |
Watch Webinar where Bill explains issues with
Commercial
& School mitigation
|

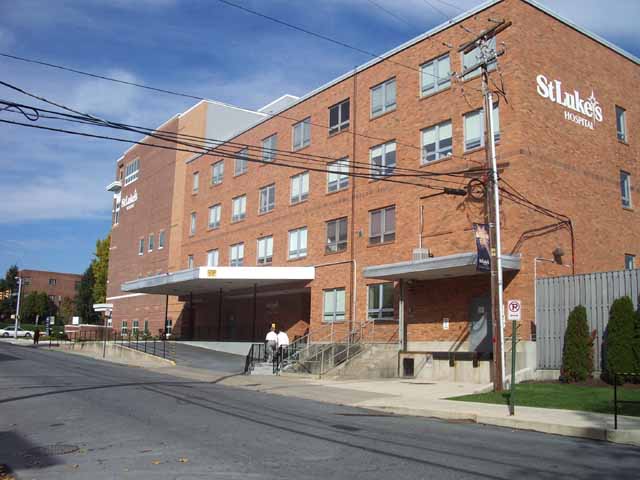

The radon mitigation design for St. Lukes Hospital included increased outdoor air and a sub-slab depressurization system |
|
|
Radon and Vapor Intrusion Mitigation (VIM) design almost always requires careful sub-slab communication test measurements We have designed specific equipment to provide sub-slab data. This published paper discusses sub-slab |
 |
|
|
A critical component to system design is measuring the differential pressures under the slab and the inside to outside pressure difference. |
 |
|
|
Sometimes it is important to determine the building leakage and the amount of outdoor air needed to pressurize the building. In this case we needed a triple blower door to induce enough pressure change.
Published paper has additional information about |
 |
|
|
If the building has crawl spaces it may be necessary to measure the air quality first before entering. |
 |
|
|
We have a large blower available to ensure safe working conditions in areas with limited ventilation |
 |
|
|
This PVC pipe with the fan mounted on the roof is depressurizing 60,000 square feet of this 1/2 million square foot warehouse. |
|
|
|
Commercial buildings typically have steel re-enforced concrete that requires diamond core drills |
|
|
|
A strip mall was built over an abandon land fill. This explosion proof fan was used with the sub-slab depressurization system to eliminate Methane inside the building The technician is measuring the Methane in the exhaust Published paper about VOC mitigation |
|
|
|
The depressurization fan should be installed outside the conditioned space of the building and twenty feet away from any building inlet vents. |
|
|
|
This residential building was over a mine shaft and had excessive airflow from the soil requiring two fans to depressurize the sub-slab |
|
|
|
Sometimes the only place the piping can be run is on the outside of the building
Example of WPB |
 |
|
|
This sub-slab depressurization system was installed on military base housing in Okinawa Japan. |
|
|
|
In this case the piping was routed up the outside but the fan was located on the roof.
Published paper about
|
|
|
|
A magnehelic gauge to indicate system operation can be located near the piping or in a remote location. Labels indicate who to call for service |
|
|
|
This was a large factory in Michigan with VOC's that we designed a sub-slab depressurization system for.
Example of WPB |
|
|
|

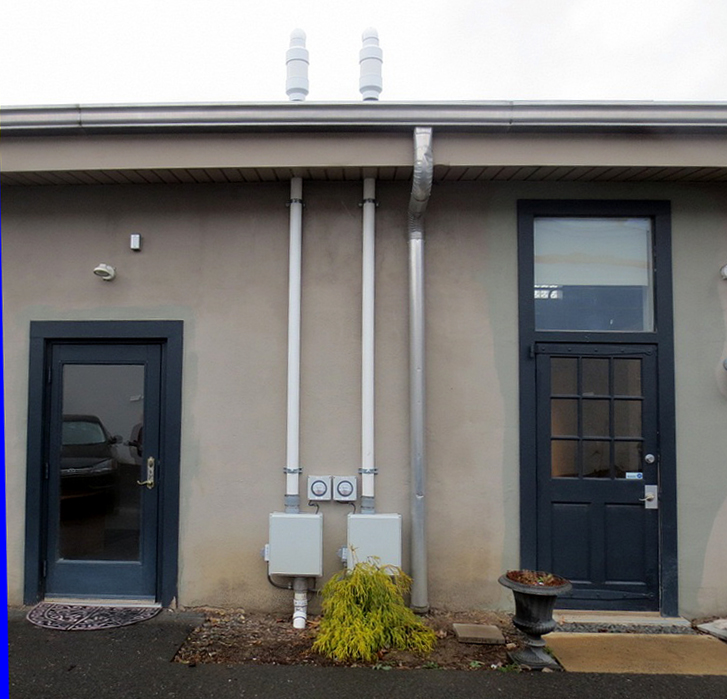

Double SOEs |
 |
|
|
Fan Measurement |
|
|
|
If you have any questions please feel free to call Bill at 610 346-8004 |
|
|
